ISE Cryptography — Reference

Block Cipher Modes of Operation

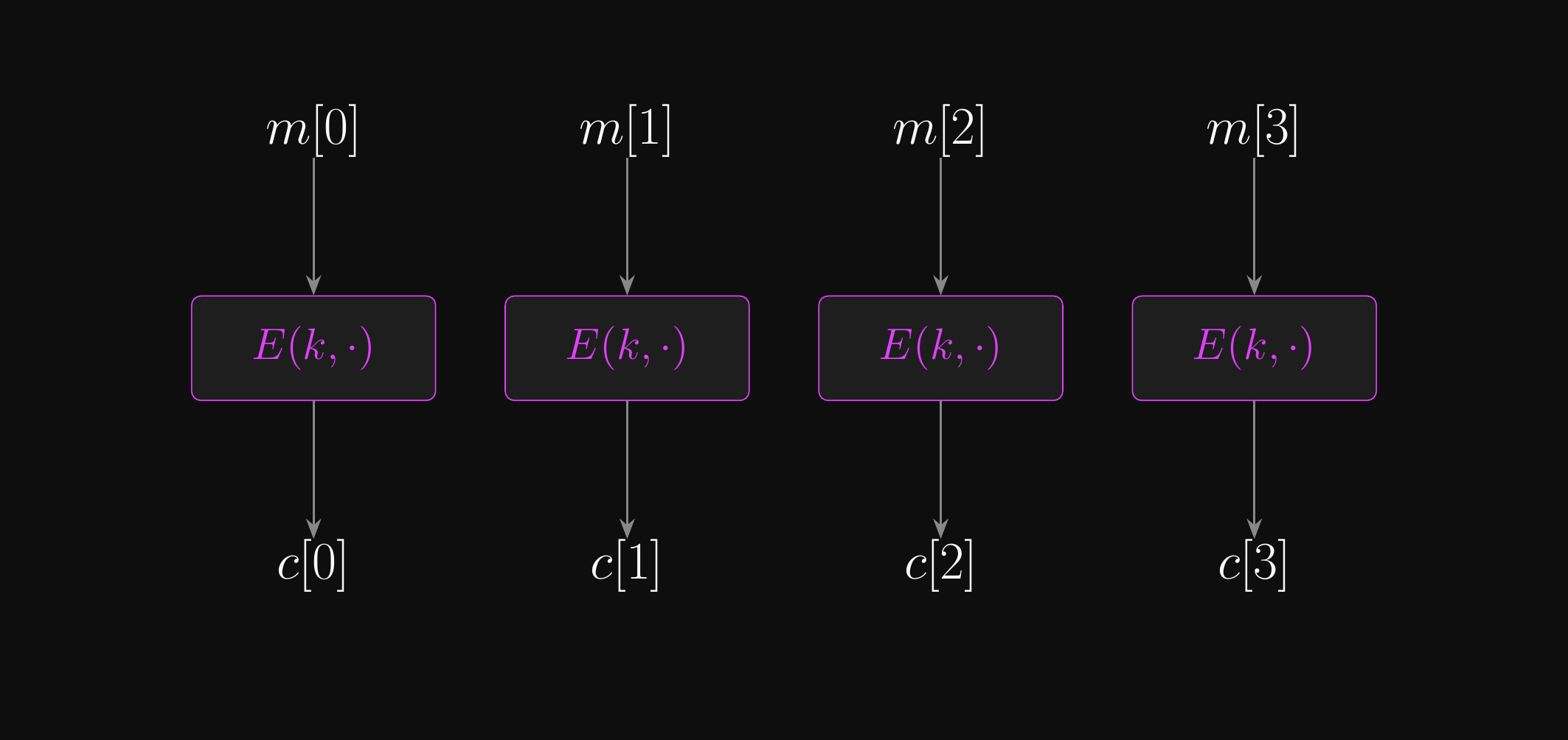

Electronic Codebook (ECB) Mode: Encryption

Electronic Codebook (ECB) Mode: Decryption

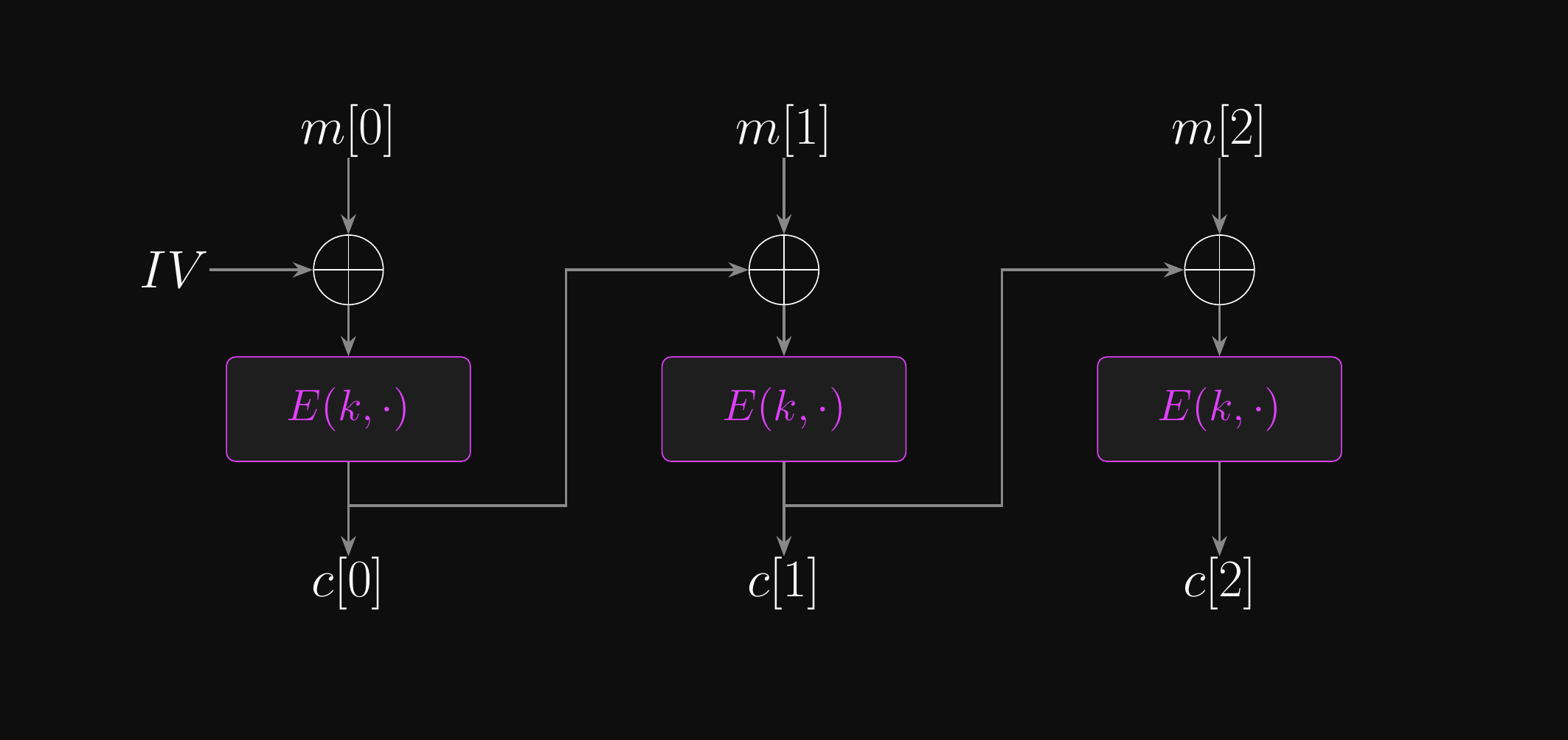

Cipher Block Chaining (CBC) Mode: Encryption

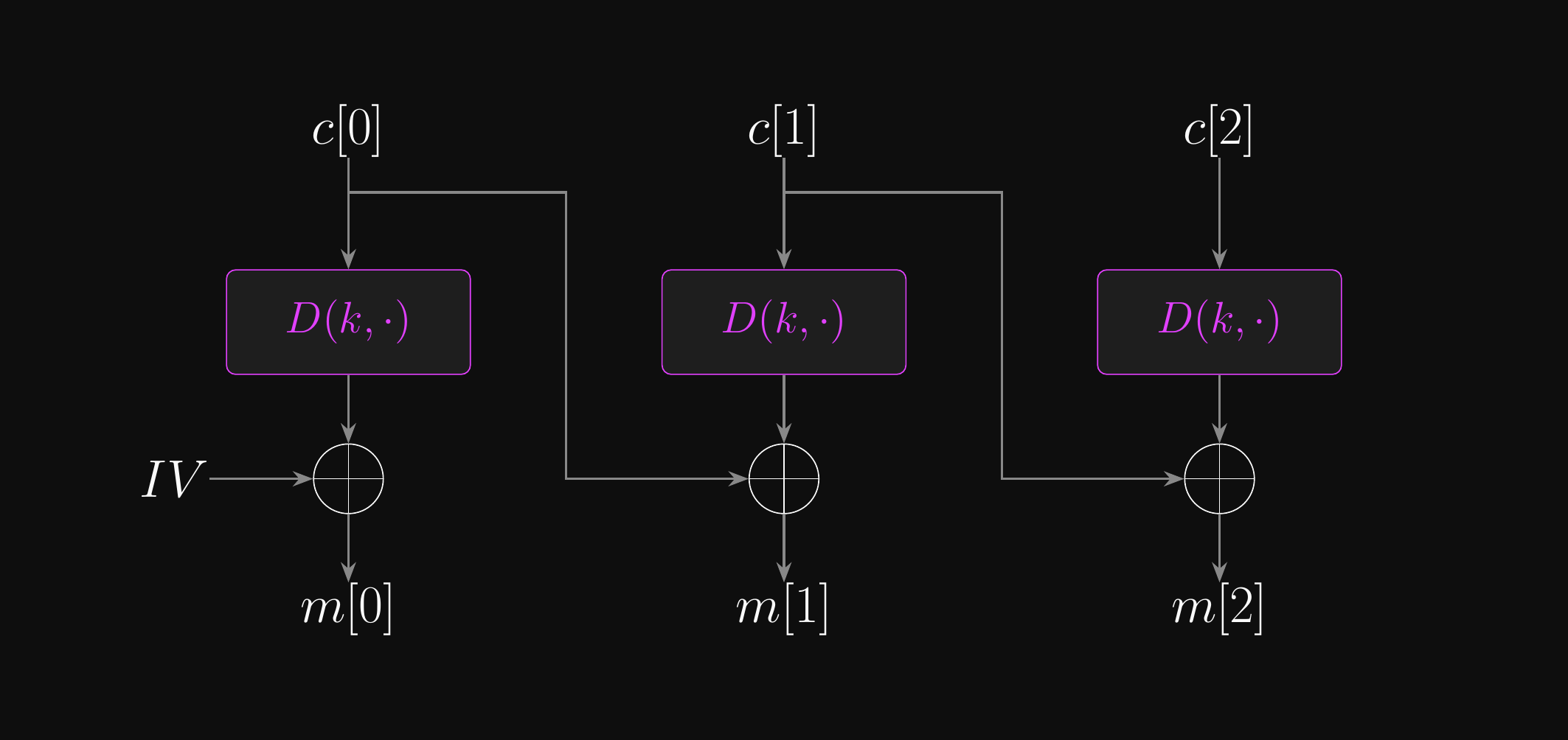

Cipher Block Chaining (CBC) Mode: Decryption

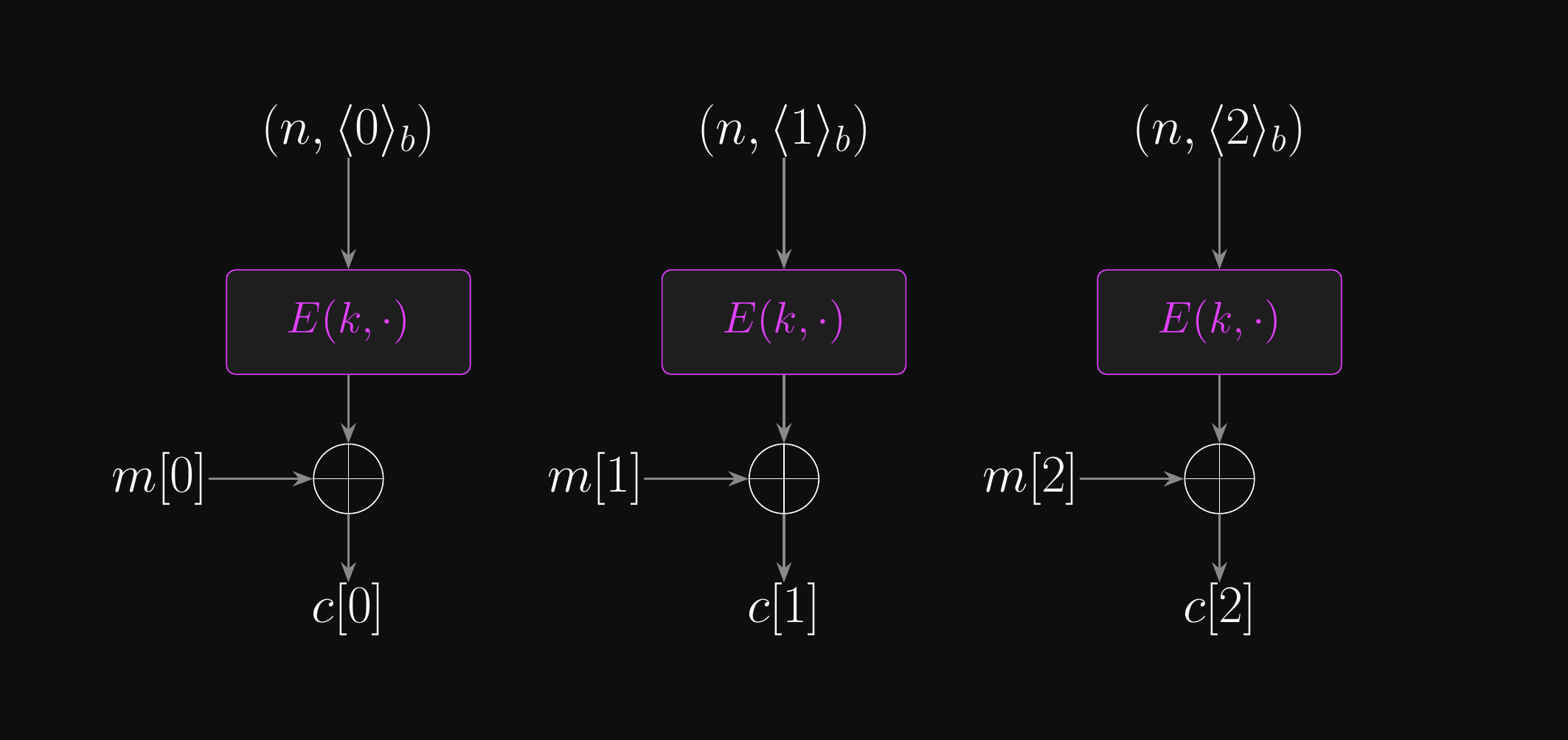

Counter (CTR) Mode: Encryption

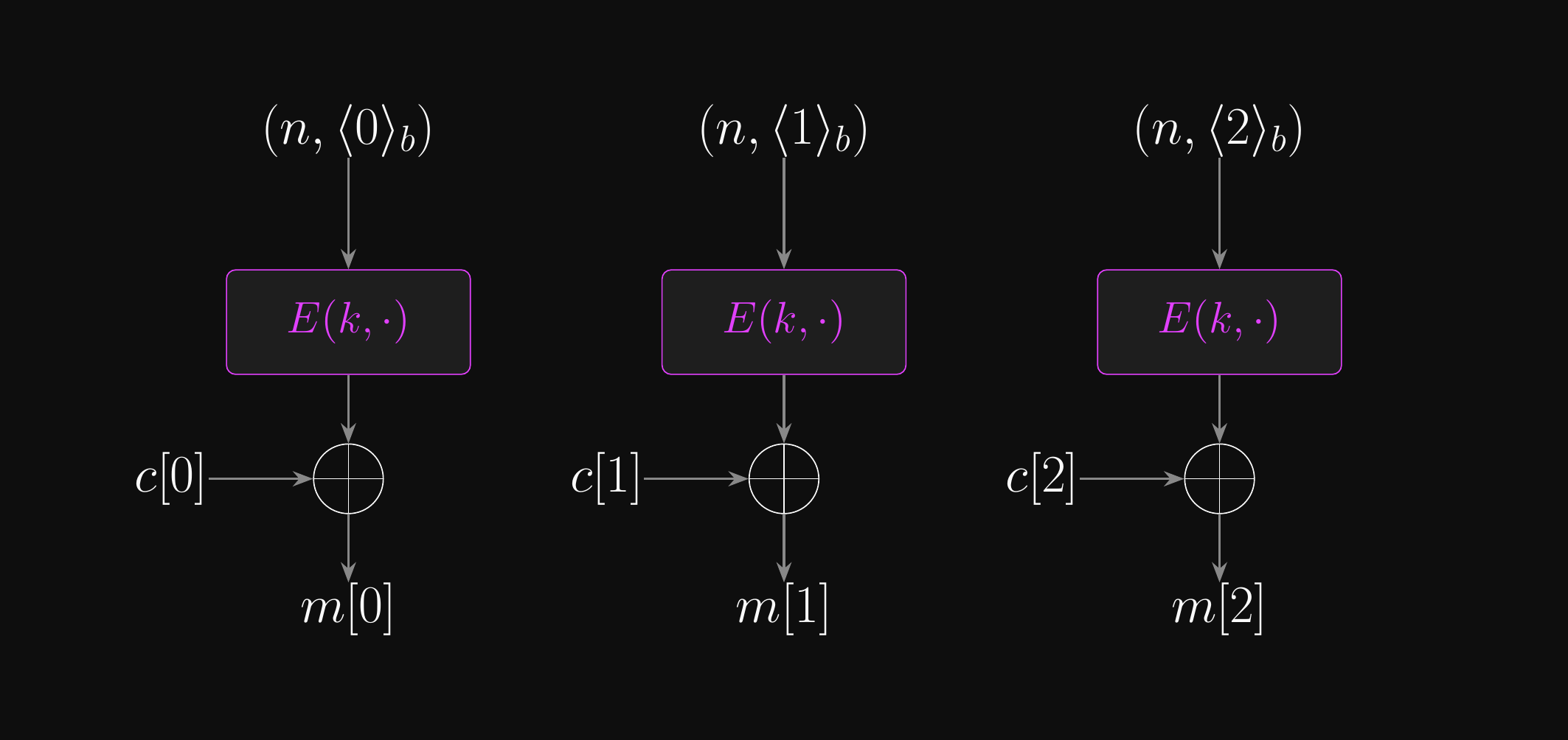

Counter (CTR) Mode: Decryption

Block Cipher Modes: Comparison

ECB CBC CTR
Encryption \(c[i] = E(k, m[i])\) \(c[i] = E(k, m[i] \oplus c[i{-}1])\) \(c[i] = m[i] \oplus E(k, (n, \langle i \rangle_b))\)
Decryption \(m[i] = D(k, c[i])\) \(m[i] = D(k, c[i]) \oplus c[i{-}1]\) \(m[i] = c[i] \oplus E(k, (n, \langle i \rangle_b))\)
\(\texttt{Enc}\) parallelisable Yes No Yes
\(\texttt{Dec}\) parallelisable Yes Yes Yes
Random read Yes Decryption only Yes
Partial last block Padding required Padding required Yes
IV / Nonce None Unpredictable IV Unique nonce
Semantically secure No Yes Yes
Notes Leaks block equality IV sent unencrypted \(\texttt{Enc}\) = \(\texttt{Dec}\) (stream cipher)
