ISE Cryptography — Lecture 07

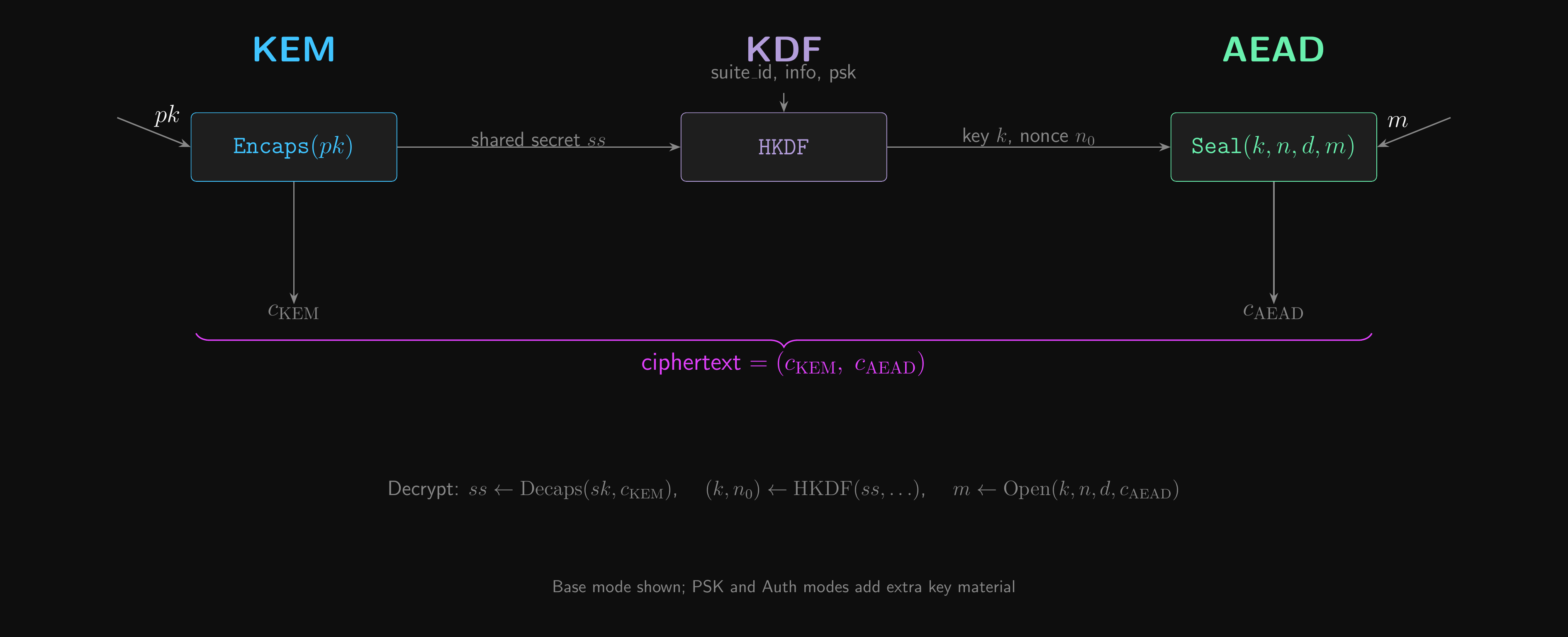

Digital Signatures, CCA Security, Authenticated Encryption and HPKE

Signatures vs MACs

The public-key alternative to message authentication.

The Comparison

MACs and digital signatures both provide message integrity and authenticity
- But they differ in a fundamental way
MACs are symmetric: both parties share the same secret key
- Any keyholder can produce and verify tags
- If Alice and Bob share a key, Bob can verify Alice’s tag, but he could also have produced it himself
- No non-repudiation: Alice can deny sending a message, and Bob can’t prove otherwise to a third party
Digital signatures are asymmetric: only the signer has the secret key
- Anyone with the public key can verify, but only the signer can produce
- Non-repudiation: once Alice signs a message, she can’t credibly deny it
- A judge, a server, or any third party can verify the signature independently
MACs prove origin to someone who already trusts you
- Signatures prove origin to anyone

Signatures as a Public-Key MAC

A digital signature scheme \(\mathcal{S} = (G, S, V)\) mirrors the MAC structure:
- \(G\): probabilistic key generation, outputs \((pk, sk)\)
- \(S\): probabilistic signing, \(\sigma \leftarrow S(sk, m)\)
- \(V\): deterministic verification, \(V(pk, m, \sigma)\) outputs accept or reject
Correctness: \(\Pr[V(pk, m, S(sk, m)) = \texttt{accept}] = 1\)
\(\mathcal{S}\) is defined over \((\mathcal{M}, \Sigma)\)
- All messages \(m\) lie in a finite message space \(\mathcal{M}\)
- All signatures \(\sigma\) lie in a finite signature space \(\Sigma\)
Unlike a MAC, no shared secret is needed
- You create a signature with your secret key
- Anyone can verify that signature with your public key

Use Cases

Software distribution: Microsoft signs update \(U\) with its secret key
- Each customer checks \(V(pk, U, \sigma) = \texttt{accept}\) before installing
- Public key \(pk\) is obtained from the previous version, not from \(U\)
- No shared keys, no trusted third party, just public key and signature!
Authenticated email (DKIM): domains sign every outgoing email
- The corresponding public key is published in a DNS record
- Recipients can verify if an email from notascam.com is authentic
Non-repudiation: once Alice signs, she can’t claim she didn’t send it
- Anyone can verify the signature using her public key
- This is stronger than MACs, and not always desirable
- In law, electronic signature \(\neq\) cryptographic digital signature

UF-CMA for Signatures

The same security framework, a new setting.

The Security Game

The game is structurally identical to MAC UF-CMA from Lecture 04
- The framework transfers: same game, same name, different setting
The challenger runs \((pk, sk) \leftarrow G()\) and sends \(pk\) to \(\mathcal{A}\)
- \(\mathcal{A}\) is an efficient \(Q\)-query adversary
\(\mathcal{A}\) gets to query the challenger \(Q\) times
- The \(i\)th signing query is a message \(m_i \in \mathcal{M}\)
- The challenger computes \(\sigma_i \leftarrow S(sk, m_i)\) and sends \(\sigma_i\) to \(\mathcal{A}\)
Eventually, \(\mathcal{A}\) outputs a candidate forgery pair \((m, \sigma)\)
- \(\mathcal{A}\) wins if \(V(pk, m, \sigma) = \texttt{accept}\) and \(m\) hasn’t been queried before
\(\text{SIG}_\text{adv}[\mathcal{A}, \mathcal{S}]\) must be negligible for all efficient adversaries
Secure signature schemes are existentially unforgeable under chosen message attack

Signature Security: Attack Game

The Key Difference from MAC UF-CMA

Unlike with MACs, we don’t need to consider verification queries
- \(\mathcal{A}\) has the public verification key, so they can verify anything themselves!
The adversary knows \(pk\), which they can use in their forgery strategy
- This is qualitatively different from the MAC setting where the key is fully secret
- The adversary has strictly more information, yet must still be unable to forge
Strongly secure signature schemes add a further constraint
- \(\mathcal{A}\) can’t forge a new valid signature even for an already-queried message
- Useful for specific proofs and protocols
- Any secure scheme can be converted into a strongly secure one

Hash-and-Sign

Public key signature schemes typically work on short inputs (hash-and-sign extends the domain)
Hash functions extend the domain, as usual
- Given \(\mathcal{S} = (G, S, V)\) over \((\mathcal{M}, \Sigma)\) where \(\mathcal{M}\) is short
- Let \(H : \mathcal{M}' \to \mathcal{M}\) be a hash function (e.g. SHA-256)
- \(S'(sk, m) = S(sk, H(m))\)
- \(V'(pk, m, \sigma) = V(pk, H(m), \sigma)\)
Security: \(\text{SIG}_\text{adv}[\mathcal{A}, \mathcal{S}'] \leq \text{SIG}_\text{adv}[\mathcal{B}_S, \mathcal{S}] + \text{CR}_\text{adv}[\mathcal{B}_H, H]\)

RSA Signatures

Digital signatures with trapdoors.

Textbook RSA Signatures are Broken

The naive approach: sign \(m\) by computing \(\sigma = m^d \mod n\)
- Verify by checking \(\sigma^e \mod n = m\)
This is broken by multiplicative homomorphism
- Given \(\sigma_1 = m_1^d\) and \(\sigma_2 = m_2^d\)
- Compute \(\sigma = \sigma_1 \cdot \sigma_2 = (m_1 \cdot m_2)^d \mod n\)
- This is a valid signature on \(m_1 \cdot m_2\) without knowing \(d\)!
This is an existential forgery: the adversary wins the UF-CMA game
- Request signatures on \(m_1\) and \(m_2\), forge a signature on their product
- The algebraic structure of RSA is the attack surface

Full Domain Hash (FDH)

The fix: hash the message before signing (Full Domain Hash)
- The hash destroys the algebraic structure that enables the homomorphism attack
Given a trapdoor permutation \(\mathcal{T} = (G, F, I)\) over \(\mathcal{X}\) and a hash \(H : \mathcal{M} \to \mathcal{X}\)
- Sign: \(\sigma \leftarrow I(sk, H(m))\) (hash the message, then invert)
- Verify: check if \(F(pk, \sigma) = H(m)\)
With RSA: \(\sigma = H(m)^d \mod n\), verify by checking \(\sigma^e \mod n = H(m)\)
\(\mathcal{S}_\text{FDH}\) is provably secure in the random oracle model (ROM)
- The ROM from Lecture 04: treat \(H\) as a truly random function
- Security reduces to the RSA assumption
Signatures are relatively large (at least 256 bytes for 2048-bit RSA)
RSA is the fastest standardised scheme for verification
- Excellent for signing certificates: sign offline, verify online

PKCS#1 v1.5 and RSA-PSS

PKCS#1 v1.5: the most commonly deployed RSA signature standard
- Used for signing X.509 certificates
- Hash, then embed in a padded structure, then sign
- No security proof! The FDH proof breaks down for partial domain hash
- Bleichenbacher’s attack exploits implementation mistakes in verification
RSA-PSS: the provably secure replacement
- Adds randomisation via a salt; provably reduces to RSA hardness
- Should be used instead of PKCS#1 v1.5 in new applications

Schnorr Signatures and ECDSA

Discrete log-based signatures.

Schnorr Signatures

Schnorr signatures are the cleanest discrete log-based scheme
- Security reduces directly to the discrete log problem (in the ROM)
Setup: group \(\mathbb{G}\) of prime order \(q\) with generator \(g\), hash function \(H\)
- Secret key: \(\alpha \xleftarrow{R} \mathbb{Z}_q\)
- Public key: \(u = g^\alpha\)
Signing message \(m\):
- Pick random \(\beta \xleftarrow{R} \mathbb{Z}_q\), compute \(u_t = g^\beta\) (the commitment)
- Compute challenge \(c = H(m \| u_t)\)
- Compute response \(\alpha_z = \beta - \alpha c \mod q\)
- Signature: \(\sigma = (u_t, \alpha_z)\)
Verification: check that \(g^{\alpha_z} \cdot u^c = u_t\) where \(c = H(m \| u_t)\)
- This works because \(g^{\beta - \alpha c} \cdot g^{\alpha c} = g^\beta = u_t\)

ECDSA

ECDSA is the standardised variant using elliptic curves
- Used in TLS, code signing, cryptocurrency (Bitcoin, Ethereum)
- Based on the same discrete log structure as Schnorr, but with a different construction
ECDSA signatures are short (64 bytes on a 256-bit curve, for 128-bit security)
- Compared to 256+ bytes for RSA signatures
- A significant advantage for bandwidth-constrained protocols

The Catastrophic Failure: Nonce Reuse

Both Schnorr and ECDSA require a fresh random nonce \(\beta\) for every signature
Nonce reuse is catastrophic: if the same \(\beta\) is used for two different messages \(m_1, m_2\):
- The commitment \(u_t = g^\beta\) is identical in both signatures
- The adversary has two equations with two unknowns (\(\alpha\) and \(\beta\))
- They can solve for the secret key \(\alpha\)!
This is not a theoretical concern. The Sony PlayStation 3 ECDSA attack (2010):
- Sony used the same nonce for every signature
- The private signing key was recovered, enabling homebrew software
- One constant nonce, total key compromise
This is an instance of a general principle: randomness failure is catastrophic in cryptographic protocols
- The same principle applies to nonce discipline for AEAD (Lecture 04)

PKI and Certificates

How does the verifier get the right public key?

The Trust Problem

Digital signatures are useless if the verifier has the wrong public key
- If Mallory gives Bob her public key and claims it’s Alice’s…
- Bob will accept Mallory’s signatures as if they came from Alice
This is the natural question after teaching signatures:
- How does the verifier obtain the correct public key?

Certificates

A certificate is a signature by a trusted authority over a public key binding
- The CA verifies Alice’s identity
- The CA signs a statement: “public key \(pk\) belongs to Alice”
- The CA signs with its own secret key: \(\sigma_\text{CA} \leftarrow S(sk_\text{CA}, m)\)
- The result \((m, \sigma_\text{CA})\) is Alice’s certificate
Bob verifies using the CA’s public key \(pk_\text{CA}\)
- \(pk_\text{CA}\) is pre-installed in browsers and operating systems
Chain of trust: CAs can delegate to intermediate CAs
- Root CA signs intermediate CA’s certificate
- Intermediate CA signs end-entity certificates
- Verification follows the chain up to a trusted root

When Trust Breaks: DigiNotar

The trust model’s critical weakness is not cryptographic
- It’s the assumption that CAs are trustworthy: a governance problem, not a mathematical one
DigiNotar (2011): a Dutch CA was compromised
- Attackers issued fraudulent certificates for google.com, *.google.com, and others
- Used to intercept Gmail traffic of Iranian dissidents
- The forged certificates were cryptographically valid
- All major browsers revoked DigiNotar’s root certificate; the company went bankrupt
Certificate Transparency (CT) is the structural fix
- All issued certificates must be logged in public, append-only logs
- Anyone can audit the logs for fraudulent certificates
- Browsers can refuse certificates that aren’t logged

CCA Security

The right security target for encryption.

Motivation: Why IND-CPA is Not Enough

IND-CPA security protects against passive adversaries
- The adversary can encrypt arbitrary messages, but nothing more
Real adversaries are active: they can submit ciphertexts for decryption
- A server’s error response to a malformed ciphertext is information
- Even “decryption failed” vs “padding error” is a useful oracle

The Bleichenbacher Attack

Bleichenbacher’s attack (1998) on PKCS#1 v1.5 RSA encryption:
- The server decrypts an RSA ciphertext and checks the PKCS#1 padding format
- If the padding is malformed, the server returns an error
- This single-bit oracle (“valid padding or not”) is enough to recover the plaintext
The adversary submits millions of modified ciphertexts
- Each modification multiplies the underlying plaintext by a chosen factor (RSA’s multiplicative homomorphism)
- The oracle’s responses progressively narrow down the plaintext value
- Eventually, the full session key is recovered
The adversary never sees any decrypted plaintext
- Just “yes/no” responses about padding validity
- This is exactly what a CCA2 decryption oracle provides

IND-CCA2: Formal Definition

We’ve looked at several notions of security based on ciphertext indistinguishability:
- IND-CPA: adversary can encrypt arbitrary messages
- IND-CCA1: adversary can also decrypt, but only before the challenge (non-adaptive)
- IND-CCA2: adversary can decrypt before and after the challenge (adaptive)
Each level gives \(\mathcal{A}\) strictly more power:
- IND-CCA2 \(\implies\) IND-CCA1 \(\implies\) IND-CPA

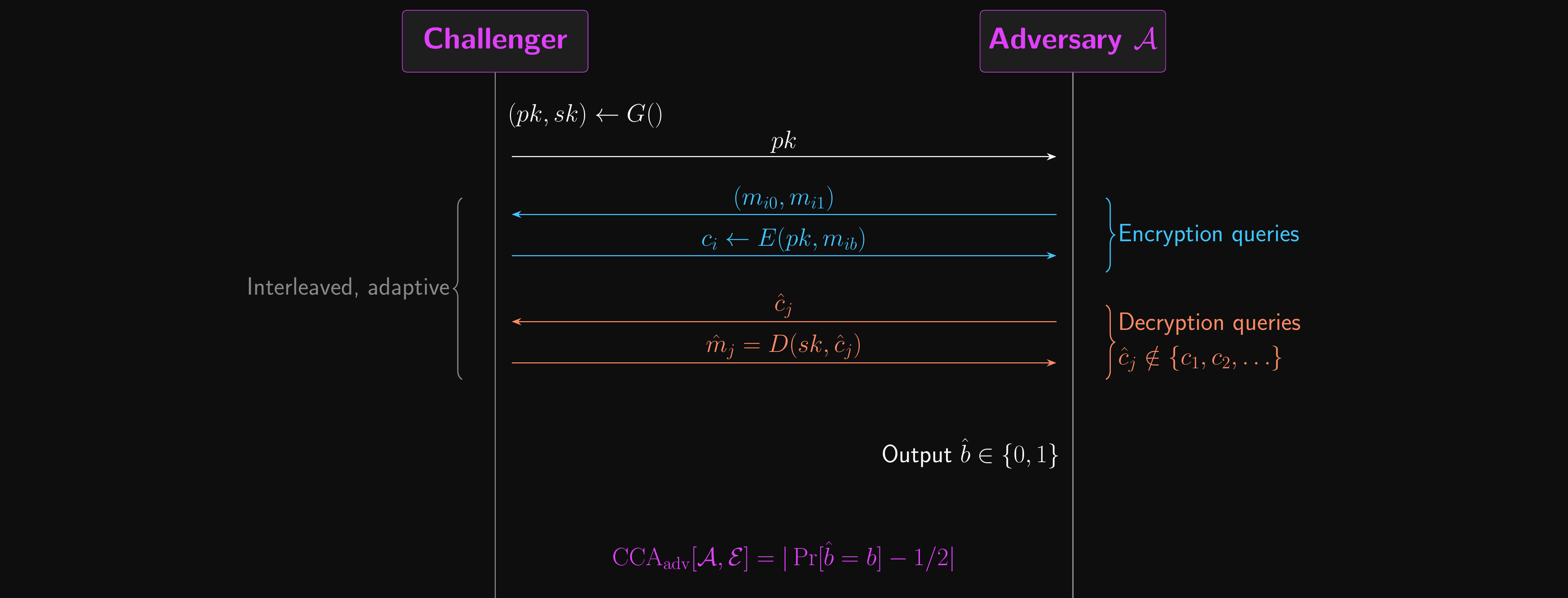

Public Key CCA Attack Game

Let \(\mathcal{E} = (G, E, D)\), defined over message space \(\mathcal{M}\) and ciphertext space \(\mathcal{C}\)
Two experiments for \(b \in \{0, 1\}\)
Challenger generates \((pk, sk) \leftarrow G()\) and sends \(pk\) to \(\mathcal{A}\)
\(\mathcal{A}\) may submit encryption queries
- Submit \((m_{i0}, m_{i1}) \in \mathcal{M}^2\), receive \(c_i \leftarrow E(pk, m_{ib})\)
\(\mathcal{A}\) may submit decryption queries
- Submit \(\hat{c}_j \in \mathcal{C}\), receive \(\hat{m}_j = D(sk, \hat{c}_j)\)
- \(\hat{c}_j\) can’t be the result of an encryption query: \(\hat{c}_j \notin \{c_1, c_2, \ldots\}\)
\(\mathcal{A}\) outputs a bit \(\hat{b} \in \{0, 1\}\)
\(\text{CCA}_\text{adv}[\mathcal{A}, \mathcal{E}] = |\Pr[W_0] - \Pr[W_1]|\)
\(\mathcal{E}\) is CCA-secure if \(\text{CCA}_\text{adv}[\mathcal{A}, \mathcal{E}]\) is negligible for all efficient \(\mathcal{A}\)

CCA Security: Attack Game

CCA and Malleability

Plenty of ciphers we’ve studied are malleable
- Given a ciphertext, we can create a new ciphertext for a related plaintext
- With a stream cipher: XORing bits of the ciphertext flips bits of the plaintext
- With RSA: multiplying ciphertexts multiplies plaintexts
If ciphertexts are malleable, then CCA security fails
- The adversary modifies the challenge ciphertext and submits it for decryption
- The decryption oracle reveals information about the original plaintext
CCA security \(\implies\) non-malleability
- We already know how to achieve this for symmetric ciphers: Encrypt-then-MAC (Lecture 04)
- For public key encryption: we need OAEP

RSA-OAEP

Closing the loop on textbook RSA.

The Problem with Textbook RSA

In Lecture 06, we flagged that textbook RSA (\(c = m^e \mod n\)) is deterministic
- Therefore not IND-CPA secure, let alone IND-CCA2
RSA’s multiplicative homomorphism makes it malleable
- Given \(c = m^e\), compute \(c' = r^e \cdot c = (rm)^e\) for any chosen \(r\)
- Submit \(c'\) for decryption, get \(rm\), divide by \(r\) to recover \(m\)

OAEP: Randomised Padding

Optimal Asymmetric Encryption Padding (OAEP) adds randomisation
- Uses two hash functions \(H\) and \(W\) in a Feistel-like structure
- Mixes a random value \(r\) into the plaintext before RSA encryption
The padded value \(x\) is the input to RSA: \(c = x^e \mod n\)
- \(x\) depends on both \(m\) and the random \(r\)
- Same plaintext produces different ciphertexts each time

OAEP: Padding Algorithm

\(P(m, r, d)\):

\[ \begin{aligned} &z \leftarrow (d \| \texttt{00\ldots01} \| m) \quad\text{s.t. } |z| = (t - h - 8) \text{ bits} \\ &z' \leftarrow z \oplus W(r) \\ &r' \leftarrow r \oplus H(z') \\ &x \leftarrow (\texttt{00}^8 \| r' \| z') \quad\text{s.t. } |x| = t \text{ bits} \\ &\textbf{return } x \end{aligned} \]

Unpadding reverses the process and rejects invalid formats

OAEP: Padding Structure

OAEP: Unpadding Structure

Security of RSA-OAEP

RSA-OAEP is IND-CCA2 secure in the random oracle model
- Security requires RSA to be a partial one-way function
- If RSA is one-way (the standard assumption), it is also partial one-way
- So RSA-OAEP is CCA-secure under the standard RSA assumption
This closes the loop from Lecture 06:
- RSA trapdoor permutation (the primitive)
- Textbook RSA encryption (IND-CPA broken, deterministic)
- RSA-OAEP (IND-CCA2 secure, randomised)
The progression illustrates that randomisation is essential for public key encryption security
- The same principle as IND-CPA requiring randomised encryption in the symmetric setting
The Web Crypto API provides an implementation of RSA-OAEP
- Please don’t attempt to roll your own…

Authenticated Encryption

From CCA security to practical AEAD.

From CCA to Authenticated Encryption

We just saw two approaches to CCA-secure encryption:
- RSA-OAEP: randomised padding for public-key encryption
- But what about symmetric encryption?
In Lecture 04, we stated the Encrypt-then-MAC theorem:
- Combining a CPA-secure cipher with a secure MAC via Encrypt-then-MAC achieves IND-CCA2 security
Earlier in this lecture, we defined IND-CCA2 formally and saw why it matters
- Active adversaries with decryption oracles can break CPA-secure ciphers
- The Bleichenbacher attack demonstrated this in practice
Now let’s prove the theorem

Recall: The CCA Theorem

In Lecture 04, we stated: Encrypt-then-MAC with a CPA-secure cipher and a secure MAC achieves IND-CCA2 security
The argument has two steps:
- Step 1: The MAC prevents the adversary from using the decryption oracle effectively
- Step 2: Without useful decryption queries, the adversary faces only CPA security

Step 1: The MAC Neuters the Decryption Oracle

In the CCA2 game, the adversary can submit ciphertexts \((c, t)\) for decryption
- But they can’t submit any \((c_i, t_i)\) received from an encryption query
For any other \((c', t')\), the MAC verification \(V(k_m, c', t')\) must pass
- If the MAC is secure (UF-CMA), the adversary can’t produce a valid tag for a ciphertext they didn’t receive
- The probability of a valid forgery is \(\text{MAC}_\text{adv}[\mathcal{A}, \mathcal{I}]\), which is negligible
So with overwhelming probability, every decryption query returns reject
- The decryption oracle gives the adversary no useful information!

Step 2: CPA Security Handles the Rest

With the decryption oracle effectively disabled, the adversary is left with:
- The public parameters
- Encryption queries (which they can make freely)
- Decryption queries that always return reject (useless)
This is functionally equivalent to the CPA game
- The CPA-secure cipher handles this case
Formally: \(\text{CCA}_\text{adv}[\mathcal{A}, \mathcal{E}_\text{EtM}] \leq \text{CPA}_\text{adv}[\mathcal{B}, \mathcal{E}] + \text{MAC}_\text{adv}[\mathcal{C}, \mathcal{I}]\)
- Both terms are negligible, so the combined advantage is negligible
This is why Encrypt-then-MAC is the gold standard for symmetric authenticated encryption

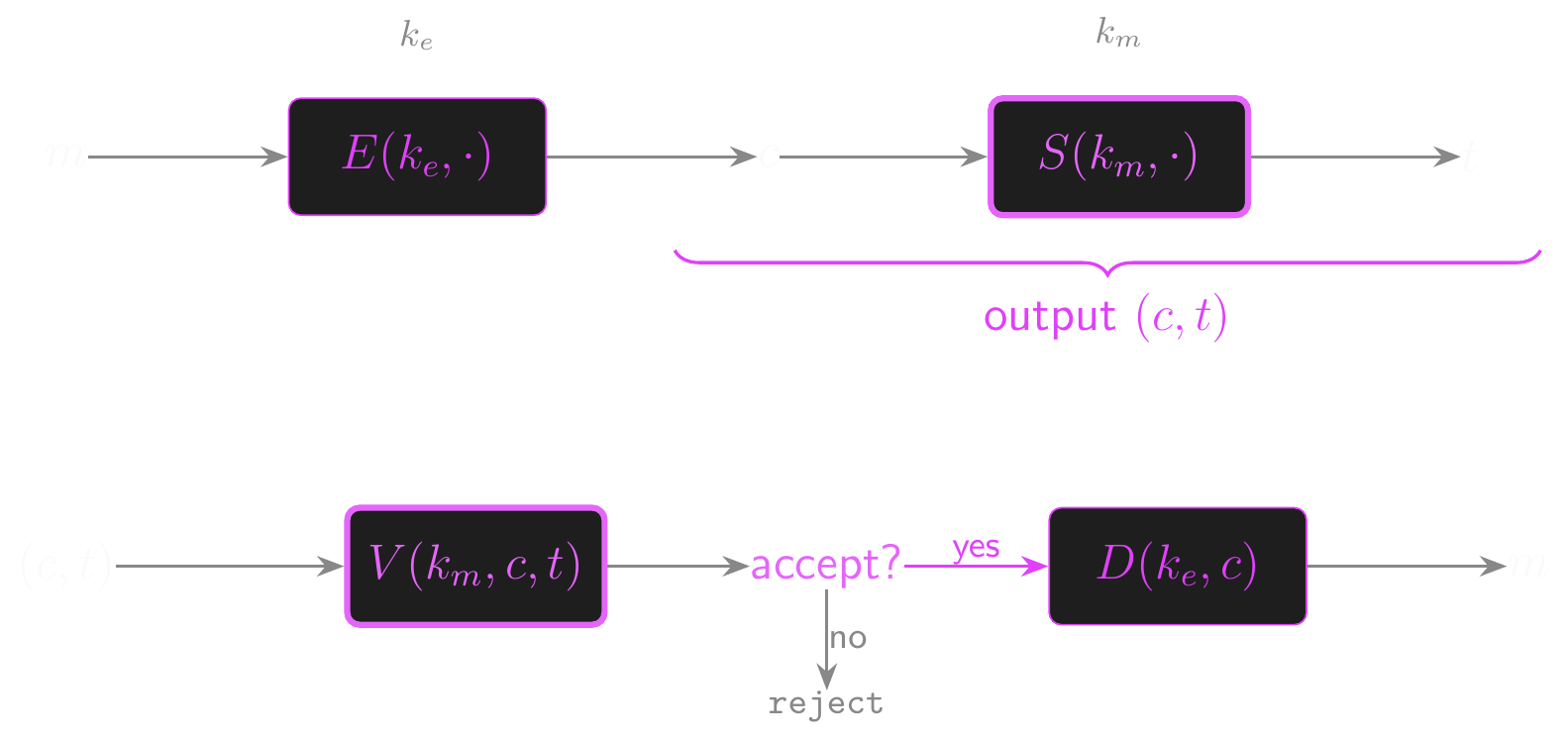

Encrypt-then-MAC

MAC-then-Encrypt

The alternative composition: compute a tag on the plaintext, then encrypt everything
- \(t \leftarrow S(k_m, m)\), then \(c \leftarrow E(k_e, m \| t)\)
This is not generally CCA-secure
- The encryption layer hides the tag from the verifier
- The decryptor must remove padding and parse the plaintext before it can check the tag
This creates a padding oracle vulnerability:
- If the server leaks whether the padding is valid (before checking the MAC), the adversary gets an oracle
- The POODLE attack (2014) exploited exactly this in TLS 1.0-1.2 CBC suites
- Even a single bit of information (“valid padding” vs “invalid padding”) can be enough
TLS 1.3 dropped all CBC cipher suites, requiring AEAD-only
- Encrypt-then-MAC (or integrated AEAD) avoids the problem entirely

MAC-then-Encrypt

Nonce-Based AEAD

In practice, authenticated encryption is packaged as a single primitive: AEAD
- Authenticated Encryption with Associated Data
A nonce-based AEAD cipher \(\mathcal{E} = (E, D)\) is defined over \((\mathcal{K}, \mathcal{M}, \mathcal{C}, \mathcal{D}, \mathcal{N})\):
- \(E(k, m, d, n) \to c\): encrypt message \(m\) with associated data \(d\) and nonce \(n\)
- \(D(k, c, d, n) \to m\) or reject: decrypt or reject if tampered
Correctness: for all \(k, m, d, n\): \(D(k, E(k, m, d, n), d, n) = m\)
Security requires two properties:
- Ciphertext indistinguishability: the ciphertext reveals nothing about the plaintext
- Ciphertext integrity: no efficient adversary can produce a valid ciphertext that wasn’t generated by the encryption oracle
The nonce \(n\) must be unique per encryption under the same key
- It need not be secret, but repeating it is catastrophic

AEAD: Operational Details

AES-GCM internals and nonce misuse resistance.

GCM Structure

Galois Counter Mode (GCM) is the most widely deployed AEAD cipher
- Standardized by NIST in 2007; used in TLS 1.3, IPsec, and many other protocols
GCM follows encrypt-then-MAC internally:
- Encryption: AES in counter mode (CTR)
- Authentication: Carter-Wegman MAC using GHASH over GF(\(2^{128}\))
Single key \(k\) derives both the encryption key and the authentication key \(k_m\)
- \(k_m \leftarrow E(k, 0^{128})\) (encrypt the zero block)

GCM Encryption

Input: key \(k\), message \(m\), associated data \(d\), and nonce \(N \in \{0, 1\}^{96}\)
\(\text{length}()\) returns a 64-bit value containing the length of the field in bits

\[ \begin{aligned} &k_m \leftarrow E(k, 0^{128}) \\ &x \leftarrow (N \| 0^{31} \| 1) \in \{0, 1\}^{128} \\ &x' \leftarrow x + 1 \\ &c \leftarrow \text{CTR-Encrypt}(k, x', m) \\ &d' \leftarrow \text{ZeroPad}(d, 128),\quad c' \leftarrow \text{ZeroPad}(c, 128) \\ &h \leftarrow \text{GHASH}(k_m,\; d' \| c' \| \text{length}(d) \| \text{length}(c)) \\ &t \leftarrow h \oplus E(k, x) \\ &\textbf{return } (c, t) \end{aligned} \]

GCM Encryption Structure

GHASH

GHASH is a Carter-Wegman MAC over GF(\(2^{128}\))
- A polynomial hash function, similar to the UHF constructions from Lecture 04
GF(\(2^{128}\)) is a Galois field defined by the irreducible polynomial:
- \(g(X) = X^{128} + X^7 + X^2 + X + 1\)
- Elements are 128-bit bitstrings; addition is XOR, multiplication is mod \(g(X)\)
GHASH(\(k, z\)) for \(z = (z_0, z_1, \ldots, z_{v-1}) \in\) GF(\(2^{128}\))\(^v\):
- \(z_0 \cdot k^v + z_1 \cdot k^{v-1} + \ldots + z_{v-1} \cdot k \in\) GF(\(2^{128}\))
- Evaluable incrementally via Horner’s method (streaming)
Modern processors have hardware support for Galois field multiplication
- AES-GCM is extremely fast with AES-NI and PCLMULQDQ instructions

ChaCha20-Poly1305

The alternative when AES hardware support is unavailable
- ChaCha20 (stream cipher from Lecture 02) + Poly1305 (one-time MAC)
- Combined as an AEAD cipher in RFC 7539
Poly1305 is a one-time MAC based on polynomial evaluation
- The same polynomial MAC construction from Lecture 04
- One-time key derived from ChaCha20’s keystream for each message
Both AES-GCM and ChaCha20-Poly1305 are available in TLS 1.3

Nonce Misuse Resistance: AES-GCM-SIV

Standard AES-GCM has no nonce misuse resistance
- Nonce reuse catastrophically breaks both confidentiality and integrity
- This was covered in detail in Lecture 04

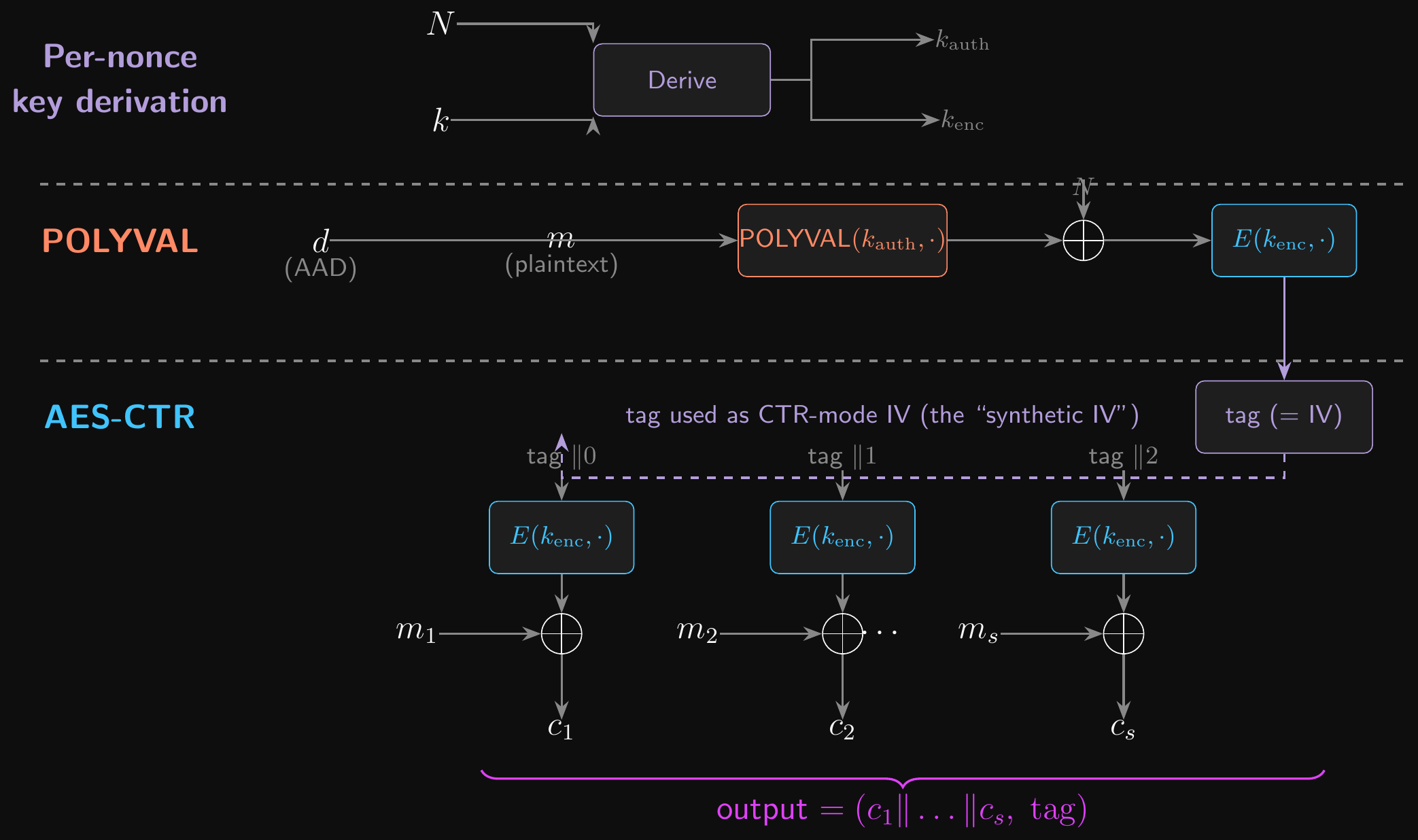

AES-GCM-SIV (RFC 8452) provides some protection:
- The nonce is mixed into the tag computation, and the tag is used as the IV for CTR mode
- If the nonce repeats but the plaintext differs, the ciphertexts still differ
- If both nonce and plaintext repeat, it only leaks that the same message was sent twice
- Authentication is not broken by nonce reuse
The cost: slightly more complex, slightly slower
- A worthwhile trade-off when nonce uniqueness cannot be guaranteed

HPKE

Hybrid public-key encryption: RFC 9180.

HPKE

Hybrid Public Key Encryption (HPKE) is defined in RFC 9180
- Plug-and-play public-key encryption framework
Why define a standard? There are many homebrew hybrid cryptosystems in the wild
- Many use outdated primitives or lack proofs of IND-CCA2 security
- No shared test vectors, no interoperability
HPKE eliminates one-off “ECIES-ish” constructions
- Easy to audit and reuse
- Supports any KEM + KDF + AEAD trio
- Already powering TLS-ECH, OHTTP, MLS and more

HPKE: Three-Stage Pipeline

HPKE Ciphersuites

Each HPKE ciphersuite needs three principal components:
- A key encapsulation mechanism (KEM)
- A key derivation function (KDF)
- An AEAD encryption algorithm
The usual assumptions about security apply to each of those components
- Familiar primitives assembled into a larger construct
A HPKE ciphersuite can be identified by the triple of algorithms:
- E.g. DHKEM(X25519, HKDF-SHA256), HKDF-SHA256, AES-128-GCM

HPKE Ciphersuite Registry

IANA maintains a public registry for each of the component types
- Maps a 16-bit identifier to algorithms in each category
KDFs and AEADs are more limited
- KDF restricted to HKDF-SHA256 and similar
- AEAD restricted to AES-GCM and ChaCha20-Poly1305
Lots of possible KEMs, though
- Various curves for elliptic curve Diffie-Hellman
- Newer options like the X25519/Kyber-768 PQ/T hybrid
- And the ML-KEM family
Up to the protocol to negotiate what algorithms will be used
- Be wary of downgrade attacks

HPKE Modes

Mode	Extra key material	Sender authentication	Typical use case
Base (0x00)	None	No	Simple message encryption
PSK (0x01)	PSK + PSK_ID	PSK only	IoT bootstrapping
Auth (0x02)	Sender static key	Yes	Secure logging
Auth-PSK (0x03)	Both	Yes	Hardened channels

HPKE Security

HPKE has strong security guarantees
- IND-CCA2 for all modes
- Relies on AEAD integrity and non-repeating nonces
Forward secrecy depends on the direction of compromise:
- Forward secret with respect to sender compromise
- Not forward secret with respect to recipient compromise
No attempt made to hide message length
- Pre-pad plaintexts if you need this property
Replay protection is protocol-dependent
- HPKE itself does not prevent replay; the outer protocol must handle it

Key Commitment

AEAD with an extra guarantee.

Key Commitment

Key commitment is a property that crops up in AEAD discussions
- A ciphertext/tag pair binds to exactly one secret key
- There is negligible probability that the same \((c, t, d, n)\) decrypts successfully under two distinct keys
Why is this useful?
- Prevents key-substitution attacks
- Useful in protocols that re-encrypt or “frank” messages
- Or where adversaries can try many keys

GCM and Key Commitment

Galois/counter mode (GCM) is not key-committing by default
An adversary who knows two keys \(k_1\), \(k_2\) can craft \((c, t)\) that validates under both
- This is called a multi-key forgery
- Practical exploits on message-franking systems were demonstrated in 2022
There are simple workarounds:
- Wrap GCM as KC-GCM to provide key commitment
- Adding an all-zero plaintext block to the start of the message also works
- If the first block doesn’t decrypt to zero, reject
- The catch is making this check constant time across both pathways

Conclusion

What did we learn?

So, what did we learn?

Digital signatures: the \((G, S, V)\) triple, UF-CMA security, hash-and-sign
- RSA-FDH, PKCS#1 v1.5 and RSA-PSS
- Schnorr and ECDSA (and the catastrophe of nonce reuse)
PKI and certificates: the trust infrastructure that makes signatures useful
CCA security: why IND-CPA is not enough
- The Bleichenbacher attack: a single-bit oracle recovers the plaintext
- RSA-OAEP: randomised padding achieves IND-CCA2 for public-key encryption
Authenticated encryption: the Encrypt-then-MAC CCA proof
- The MAC neuters the decryption oracle; CPA security handles the rest
- MAC-then-Encrypt and the padding oracle vulnerability
AEAD in practice: AES-GCM, ChaCha20-Poly1305, nonce misuse resistance
HPKE: plug-and-play hybrid PKE from KEM + KDF + AEAD (RFC 9180)
Key commitment: why standard GCM is not key-committing, and how to fix it

Where Do We Go from Here?

The theoretical arc is nearly complete
- One more operational topic before the project: key derivation and password hashing
Next lecture covers:
- The entropy gap between passwords and cryptographic keys
- PBKDF2 and its limitations (compute-hard but not memory-hard)
- Argon2id: the current gold standard for password hashing
- A lab exercise building the EPIC project’s core cryptographic stack

For Next Time

Complete some assigned reading:
- Boneh and Shoup, Chapters 9 (authenticated encryption) and 18 (signatures)
- The OWASP Password Storage Cheat Sheet
- Skim RFC 9180 (HPKE), Sections 1-4

Questions?

Ask now, catch me after class, or email eoin@eoin.ai
